모델의 서피스 타입 구분 하기

모데의 서피스 타입을 구분 하는 코드 입니다. 서피스 타입은 "숫자"로 표시 합니다

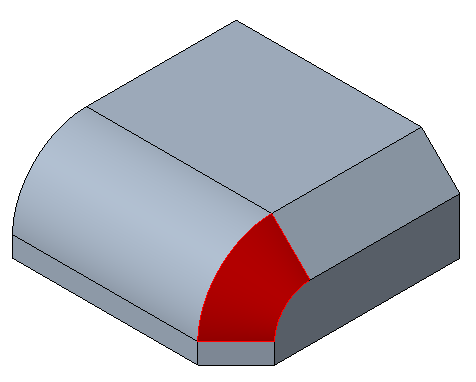

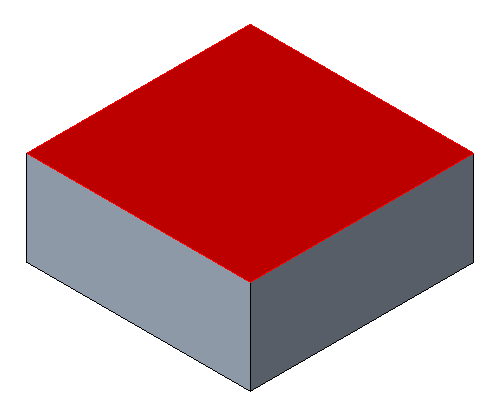

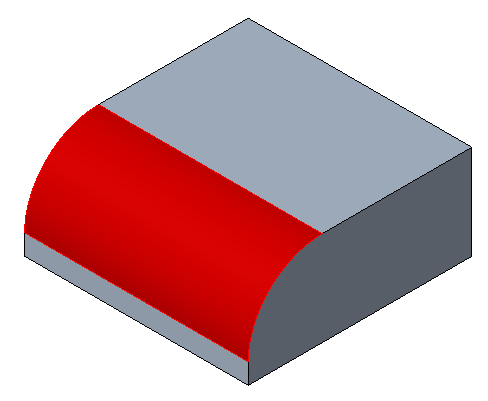

Type "0"	Type "1"	Type "2"



Option Explicit
Sub Surfacetype()

On Error GoTo RunError

    Dim asynconn As New pfcls.CCpfcAsyncConnection
    Dim conn As pfcls.IpfcAsyncConnection
    Dim BaseSession As pfcls.IpfcBaseSession
    Dim Session As IpfcSession
    Dim model As IpfcModel
    Dim ModelItemOwner As IpfcModelItemOwner
    Dim ModelItems As IpfcModelItems
    Dim ModelItem As IpfcModelItem
    Dim Surface As IpfcSurface

    Set conn = asynconn.Connect("", "", ".", 5)
    Set BaseSession = conn.Session
    Set model = BaseSession.CurrentModel
    Set ModelItemOwner = model

    '// Solid Model Surface List
    Set ModelItems = ModelItemOwner.ListItems(EpfcModelItemType.EpfcITEM_SURFACE)

    Dim i As Integer

    For i = 0 To ModelItems.Count - 1

        Set ModelItem = ModelItems.Item(i)
        Set Surface = ModelItem
        MsgBox Surface.GetSurfaceType

    Next i

    conn.Disconnect (2)

    '// Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set Session = Nothing
    Set model = Nothing

RunError:

        If Err.Number <> 0 Then
            MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                    "Error No: " + CStr(Err.Number) + Chr(13) + _
                    "Error: " + Err.Description, vbCritical, "Error"

            If Not conn Is Nothing Then
                If conn.IsRunning Then
                    conn.Disconnect (2)
                End If
            End If
        End If

End Sub

---
