ToolBOX VBA 1.5 개발 작업 #2

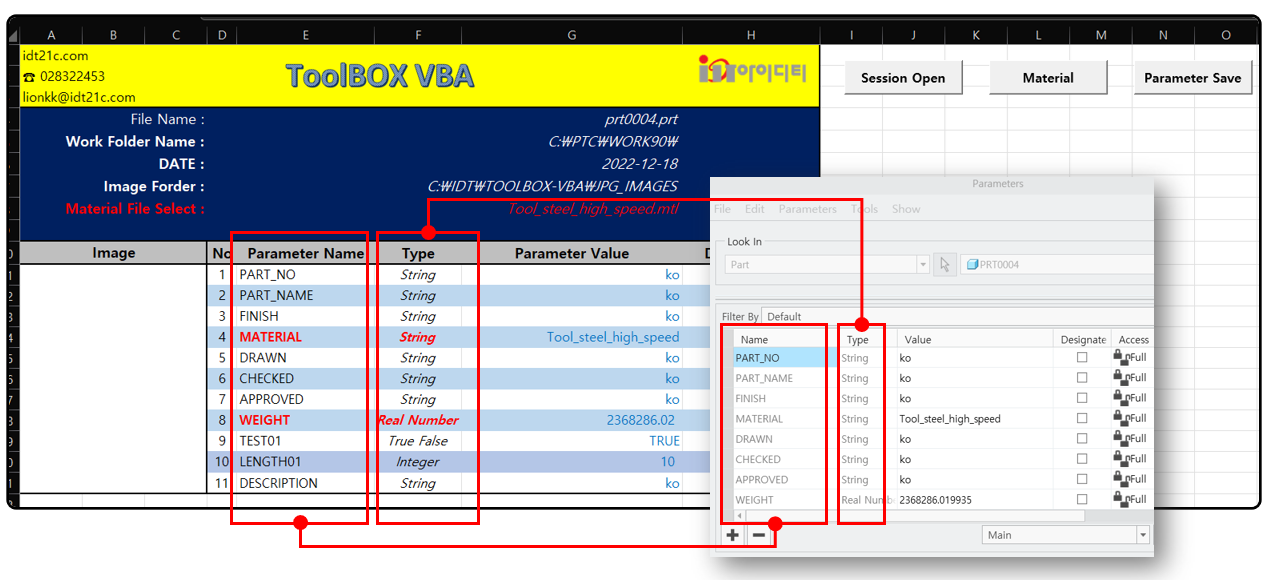

■ Component Info Sheet

- 사용자가 정의한 Parameter 이름을 모델에 추가 할 수 있습니다
- Material 파일을 선택 할수 있습니다.
- 선택한 Material 파일의 밀도 값을 이용하여, 자동으로 무게 계산 결과 값을 표시 합니다.

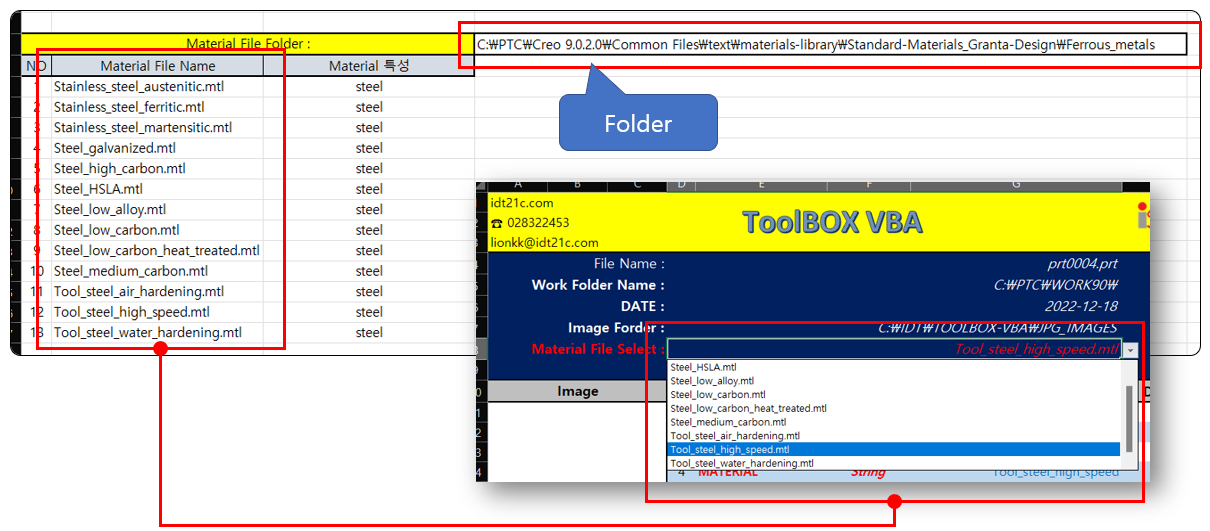

■ Material File List 관리 Sheet

- Material File이 모여 있는 폴더 이름을 표시 합니다
- Material File Name를 추가 할수 있습니다.
- Material File Name은 "Materia" Parameter의 값 입니다.
- Material File에 "밀도" 값이 있어야 합니다.

■ Component Info VBA 메뉴

1. Session OPen

- Creo 파일에 "Component Info"에 표시된 Parameter가 없으면 자동 추가 됩니다. 기본값이 자동으로 입력 됩니다
- Creo 파일에 "Component Info"에 표시된 Parameter가 있으면, 값만 표시됩니다.

2. Material

- "Material File Select"에 선택된 파일 이름이, "Materila" 항목에 자동으로 입력 됩니다
- "Weight" 항목에 무게 값이 자동으로 입력 됩니다
- "Assemble" 파일은 사용 하지 마십시요

3. Parameter Save

- 입력한 Parameter 값을 모델에 저장 합니다.
- Parameter 타입이 다르면 오류가 발생 합니다.
- "Parameter Save" 메뉴는 "Session OPen"메뉴 사용후 실행 해야 합니다

1. Session OPen 코드

Option Explicit
Sub Modelopen()

Application.EnableEvents = False
On Error GoTo RunError

        Dim asynconn As New pfcls.CCpfcAsyncConnection
        Dim conn As pfcls.IpfcAsyncConnection: Set conn = asynconn.Connect("", "", ".", 5)
        Dim oSession As pfcls.IpfcBaseSession: Set oSession = conn.session
        Dim oModel As IpfcModel: Set oModel = oSession.CurrentModel
        Dim oSolid As IpfcSolid: Set oSolid = oModel


        Call MaterialSelect


        '// Model Information Display

        Range("D4") = oModel.Filename
        Range("D5") = oSession.GetCurrentDirectory
        Range("D6") = Date



        '// Model Parameter Display

        Dim rng As Range
        Set rng = Range("E11", Cells(Rows.Count, "E").End(xlUp))

        Dim oBaseParameter As pfcls.IpfcBaseParameter
        Dim oParameterOwner As IpfcParameterOwner: Set oParameterOwner = oModel
        Dim oParameter As IpfcParameter
        Dim oParamValue As IpfcParamValue
        Dim oCMModelItem As New CMpfcModelItem

        Dim oModelItem As IpfcModelItem
        Dim oCellsParameterName, oCellsParameterType As String

        Dim i As Long


        For i = 0 To rng.Count - 1

            Set oBaseParameter = oParameterOwner.GetParam(Cells(i + 11, "E")) '// 엑셀의 PARAMETER 이름으로 모델의 PARAMETER 가져오기

            oCellsParameterType = Cells(i + 11, "F") '// 엑셀에서 PARAMETER 타입 가져오기

            If oBaseParameter Is Nothing Then

               If oCellsParameterType = "String" Then
                       Set oParamValue = oCMModelItem.CreateStringParamValue("IDT")

                ElseIf oCellsParameterType = "Real Number" Then
                       Set oParamValue = oCMModelItem.CreateDoubleParamValue(0)

                ElseIf oCellsParameterType = "True False" Then
                       Set oParamValue = oCMModelItem.CreateBoolParamValue(True)

                Else
                       Set oParamValue = oCMModelItem.CreateIntParamValue(0)

                End If
                 Set oBaseParameter = oParameterOwner.CreateParam(Cells(i + 11, "E"), oParamValue)

            Else

              Set oParamValue = oBaseParameter.Value

              If oParamValue.discr = 0 Then
                  Cells(i + 11, "G") = oParamValue.StringValue

               ElseIf oParamValue.discr = 3 Then
                  Cells(i + 11, "G") = oParamValue.DoubleValue

               ElseIf oParamValue.discr = "2" Then
                  Cells(i + 11, "G") = oParamValue.BoolValue

               Else
                   Cells(i + 11, "G") = oParamValue.IntValue

               End If

            End If

    Next i

    MsgBox "Creo File opened", vbInformation, "www.idt21c.com"

       conn.Disconnect (2)

    'Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set oSession = Nothing
    Set oModel = Nothing


Exit Sub

RunError:
    If Err.Number <> 0 Then
        MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                "Error No: " + CStr(Err.Number) + Chr(13) + _
                "Error: " + Err.Description, vbCritical, "Error"
        If Not conn Is Nothing Then
            If conn.IsRunning Then
                conn.Disconnect (2)
            End If
        End If
    End If


End Sub
Sub MaterialSelect()

    Application.EnableEvents = False

'// Material File Select

    Sheets("Material").Select

    Dim rng As Range

        Set rng = Sheets("Material").Range("A5", Cells(Rows.Count, "A").End(xlUp))

    Dim i As Long
    Dim oMaterialFileName() As String
    ReDim oMaterialFileName(0 To rng.Count - 1)

        For i = 0 To rng.Count - 1
            oMaterialFileName(i) = rng.Cells(i + 5, "B")

        Next i

    Worksheets("Component Info").Select

    Dim region As Variant
    region = oMaterialFileName()


    Dim region_range As Range
    Set region_range = Cells(8, "D")

        With region_range.Validation
                   .Delete
                   .Add Type:=xlValidateList, AlertStyle:=xlValidAlertStop, Formula1:=Join(region, ",")
                   .IgnoreBlank = True
                   .InCellDropdown = True
                   .InputTitle = ""
                   .ErrorTitle = "Error"
                   .InputMessage = ""
                   .ErrorMessage = "Please Provide a Valid Input"
                   .ShowInput = True
                   .ShowError = True
                  End With

End Sub

2. Material 코드

Option Explicit
Sub Modelmaterial()

Application.EnableEvents = False
On Error GoTo RunError

        Dim asynconn As New pfcls.CCpfcAsyncConnection
        Dim conn As pfcls.IpfcAsyncConnection: Set conn = asynconn.Connect("", "", ".", 5)
        Dim oSession As pfcls.IpfcBaseSession: Set oSession = conn.session
        Dim oModel As IpfcModel: Set oModel = oSession.CurrentModel
        Dim oSolid As IpfcSolid: Set oSolid = oModel


        '// config.pro 옵션

        Dim oMaterialDir As String: oMaterialDir = Sheets("Material").Cells(3, "D")
        Call oSession.SetConfigOption("mass_property_calculate", "automatic")
        Call oSession.SetConfigOption("pro_material_dir", oMaterialDir)


        '//Material File Select
         Dim oMaterialFileName As String: oMaterialFileName = Replace(Cells(8, "D"), ".mtl", "")
         Cells(14, "G") = oMaterialFileName

         Dim oPart As IpfcPart: Set oPart = oSolid
         Dim oMaterial As IpfcMaterial: Set oMaterial = oPart.RetrieveMaterial(oMaterialFileName)

         oPart.CurrentMaterial = oMaterial

         '//Material Regenerate
         Dim regenInstrs As New CCpfcRegenInstructions
         Dim iRegenInstrs As IpfcRegenInstructions
         Set iRegenInstrs = regenInstrs.Create(False, True, Nothing)
         Call oSolid.Regenerate(iRegenInstrs)


         '//Mass Calculate
         Dim oMassProperty As IpfcMassProperty
         Set oMassProperty = oSolid.GetMassProperty("")
         Cells(18, "G") = oMassProperty.Mass


         MsgBox "Materila File을 지정하였습니다", vbInformation, "www.idt21c.com"


 conn.Disconnect (2)

    'Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set oSession = Nothing
    Set oModel = Nothing



RunError:
    If Err.Number <> 0 Then
        MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                "Error No: " + CStr(Err.Number) + Chr(13) + _
                "Error: " + Err.Description, vbCritical, "Error"
        If Not conn Is Nothing Then
            If conn.IsRunning Then
                conn.Disconnect (2)
            End If
        End If
    End If


End Sub

3. Parameter Save 코드

Option Explicit
Sub modelparamsave()

Application.EnableEvents = False
On Error GoTo RunError

        Dim asynconn As New pfcls.CCpfcAsyncConnection
        Dim conn As pfcls.IpfcAsyncConnection: Set conn = asynconn.Connect("", "", ".", 5)
        Dim oSession As pfcls.IpfcBaseSession: Set oSession = conn.session
        Dim oModel As IpfcModel: Set oModel = oSession.CurrentModel
        Dim oSolid As IpfcSolid: Set oSolid = oModel


        Dim rng As Range
        Set rng = Range("E11", Cells(Rows.Count, "E").End(xlUp))


        Dim oPowner As pfcls.IpfcParameterOwner: Set oPowner = oModel
        Dim oBaseParameter As pfcls.IpfcBaseParameter
        Dim oParams As IpfcParameters
        Dim oParam As IpfcParameter
        Dim ParamObject As New CMpfcModelItem
        Dim oParamValue As pfcls.IpfcParamValue


        Dim oParamtype As String
        Dim oInteger As Integer
        Dim oDouble As Double
        Dim i As Integer

        Dim oStringvalue As String


        For i = 0 To rng.Count - 1

            Cells(i + 11, "F").Select
            oParamtype = ActiveCell.Value
            Set oParam = oPowner.GetParam(Cells(i + 11, "E"))
            Set oBaseParameter = oParam


            If oParamtype = "String" Then

                        Set oParamValue = ParamObject.CreateStringParamValue(Cells(i + 11, "G"))

            ElseIf oParamtype = "Integer" Then

                        Set oParamValue = ParamObject.CreateIntParamValue(Cells(i + 11, "G"))

            ElseIf oParamtype = "True False" Then

                        Set oParamValue = ParamObject.CreateBoolParamValue(Cells(i + 11, "G"))

            Else
                        Set oParamValue = ParamObject.CreateDoubleParamValue(Cells(i + 11, "G"))

            End If

            oBaseParameter.Value = oParamValue

        Next i

        oModel.Save

        MsgBox "Parameter를 저장 하였습니다", vbInformation, "www.idt21c.com"


       conn.Disconnect (2)

    'Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set oSession = Nothing
    Set oModel = Nothing


Exit Sub

RunError:
    If Err.Number <> 0 Then
        MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                "Error No: " + CStr(Err.Number) + Chr(13) + _
                "Error: " + Err.Description, vbCritical, "Error"
        If Not conn Is Nothing Then
            If conn.IsRunning Then
                conn.Disconnect (2)
            End If
        End If
    End If


End Sub

■ 동영상

By lionkk@idt21c.com

저작자표시 비영리 변경금지
