가로*세로*높이 사이즈 알아보기

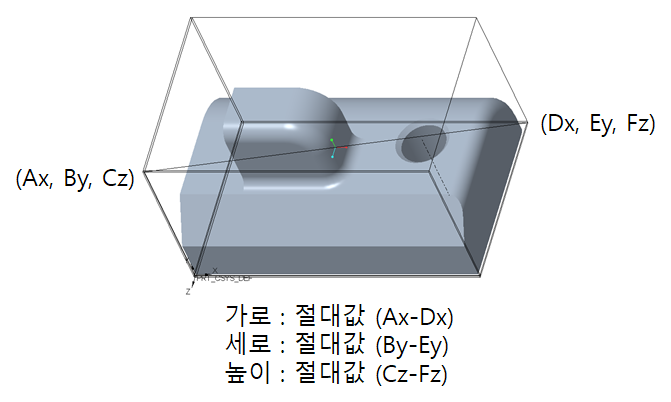

3D 형상을 BOX 형태의 사이즈를 알아보는 프로그램 입니다. CREO에서는 대각선 사이즈는 3D point를 제공 합니다. CREO의 사이즈 계산 기능 문제점은 데이텀 커브, 데이텀 평면, 서피스를 사이즈 계산에 포함 시킵니다.

[ CREO 사이즈 측정 ]

---

J-LINK)  사이즈 계산 코드

import com.ptc.cipjava.*;
import java.io.*;
import com.ptc.pfc.pfcGlobal.*;
import com.ptc.pfc.pfcSession.*;
import com.ptc.pfc.pfcBase.*;
import com.ptc.pfc.pfcSolid.*;
import com.ptc.pfc.pfcModelItem.*;
import com.ptc.pfc.pfcGeometry.*;
import java.awt.*;

public class diagonal{

  static Session session;
  static Solid solid;
  static Outline3D outline;
  static Transform3D trans3;
  static Point3D point1,point2,point3;
  static double x, y, z,k,l,m,diagonal,p,q,r,sum;
  static CoordSystem cor;
  static ModelItems mitems;
  static ModelItemType item1  =ModelItemType.ITEM_AXIS;
  static ModelItemType item2  =ModelItemType.ITEM_POINT;
  static ModelItemType item3  =ModelItemType.ITEM_COORD_SYS;
  static ModelItemTypes modtyp;
  static String name;

  public static void start ()
  {
    try {
    session=pfcGlobal.GetProESession();
        solid =(Solid)session.GetCurrentModel();
        mitems=solid.ListItems(ModelItemType.ITEM_COORD_SYS);
        cor=(CoordSystem)mitems.get(0);
        trans3=cor.GetCoordSys();
        name=cor.GetName();
        System.out.println("The Name of the cordinate-system is "+name);
        point1=trans3.GetOrigin();
        k=point1.get(0);
        l=point1.get(1);
        m=point1.get(2);
        System.out.println("The Value of x cordinate of origin is "+k);
        System.out.println("The Value of y cordinate of the origin is "+l);
        System.out.println("The Value of z coordinate of the origin is "+m);
        modtyp=ModelItemTypes.create();
        modtyp.set(0,item1);
        modtyp.set(1,item2);
        modtyp.set(2,item3);
        outline=solid.EvalOutline(trans3,modtyp);
        point2= outline.get(0);
        x = point2.get(0);
        y = point2.get(1);
        z = point2.get(2);
        point3=outline.get(1);
        p= point3.get(0);
        q = point3.get(1);
        r = point3.get(2);
        sum=Math.pow(p-x,2)+Math.pow(q-y,2)+Math.pow(r-z,2);
        diagonal=Math.sqrt(sum);
        new SuccessDialog(new Frame(), true, p-x, q-y, r-z,diagonal);
        System.out.println("The Value of the diagonal is "+diagonal);
        return;
    }
    catch (jxthrowable x1)
      {
        System.out.println("Exception caught: "+x1);
        x1.printStackTrace();
        System.exit(-1);
      }

  }

  public static void stop (){
    System.out.println("Stopping J-link ");
  }
}

PTC 사이트

CS189592 - How to use the J-Link Solid.EvalOutline() to duplicate Pro/ENGINEER #Info #Model Size functionality by determining th



IpfcSolid.EvalOutline 기능을 사용 하여, 솔리드 모델 사이즈를 계산 합니다.

- 좌표계를 기준으로 사이즈 계산을 합니다.  모델에서 좌표계의 이름은 "PRT_CSYS_DEF" 으로 정의 되어있어야 합니다
  아래 코드는 좌표계 위치에 따라 값이 달라 지고, "1.5" 정도 오류가 있습니다
- EpfcITEM_AXIS, EpfcITEM_COORD_SYS, EpfcITEM_POINT 사이즈 계산에서 제외 할 수 있습니다.
  (IpfcSolid.EvalOutline는 기능 제약이 있습니다)
- IpfcTransform3D 매소드는 좌표계를 행렬로 변환해 줍니다



Option Explicit
Sub TEMPLATE()

    Application.EnableEvents = False
    Dim asynconn As New pfcls.CCpfcAsyncConnection
    Dim conn As pfcls.IpfcAsyncConnection:

    '//////////////////////////////////////////////////////////////////////////////////////////////////////
    '// Creo Connect Check
    '//////////////////////////////////////////////////////////////////////////////////////////////////////
    On Error Resume Next
    Set conn = asynconn.Connect("", "", ".", 5)

        If conn Is Nothing Then

           MsgBox "Error occurred while starting new Creo Parametric Session!", vbInformation, "www.idt21c.com"
           Exit Sub

        End If
    '//////////////////////////////////////////////////////////////////////////////////////////////////////


    On Error GoTo RunError

    Dim oSession As pfcls.IpfcBaseSession: Set oSession = conn.Session
    Dim oModel As IpfcModel: Set oModel = oSession.CurrentModel
    Dim oSolid As IpfcSolid: Set oSolid = oModel
    Dim oWindows As IpfcWindow: Set oWindows = oSession.CurrentWindow


    '//////////////////////////////////////////////////////////////////////////////////////////////////////
    '// Active Models Check
    '//////////////////////////////////////////////////////////////////////////////////////////////////////
        If oModel Is Nothing Then

           MsgBox "No Active Models!", vbInformation, "www.idt21c.com"
           Exit Sub

        End If
    '//////////////////////////////////////////////////////////////////////////////////////////////////////


    Dim outline(3) As Double

    '// 사이즈 계산에 제외 항목들

    Dim oCreateModelItemTypes As CpfcModelItemTypes
    Dim excludeModelItemTypes As IpfcModelItemTypes

    Set excludeModelItemTypes = New CpfcModelItemTypes

    With excludeModelItemTypes

             .Append (EpfcModelItemType.EpfcITEM_AXIS)
             .Append (EpfcModelItemType.EpfcITEM_COORD_SYS)
             .Append (EpfcModelItemType.EpfcITEM_POINT)

    End With

    Dim oModelowner As IpfcModelItemOwner: Set oModelowner = oSolid
    Dim oCoordSystem As IpfcCoordSystem: Set oCoordSystem = oModelowner.GetItemByName(3, "PRT_CSYS_DEF")
    Dim oTransform3D As IpfcTransform3D: Set oTransform3D = oCoordSystem.CoordSys


    Dim outline3d As IpfcOutline3D
    Set outline3d = oSolid.EvalOutline(oTransform3D, excludeModelItemTypes)

    outline(0) = Math.Abs(outline3d.Item(1).Item(0) - outline3d.Item(0).Item(0))
    outline(1) = Math.Abs(outline3d.Item(1).Item(1) - outline3d.Item(0).Item(1))
    outline(2) = Math.Abs(outline3d.Item(1).Item(2) - outline3d.Item(0).Item(2))

    MsgBox outline(0)
    MsgBox outline(1)
    MsgBox outline(2)



    conn.Disconnect (2)

    'Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set oSession = Nothing
    Set oModel = Nothing

RunError:
    If Err.Number <> 0 Then
        MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                "Error No: " + CStr(Err.Number) + Chr(13) + _
                "Error: " + Err.Description, vbCritical, "Error"
        If Not conn Is Nothing Then
            If conn.IsRunning Then
                conn.Disconnect (2)
            End If
        End If
    End If

End Sub



CREO OVERALL SIZE.xlsm

0.02MB
