Get the Parameter name of the model and delete it

□ Code to get the model's Parameter

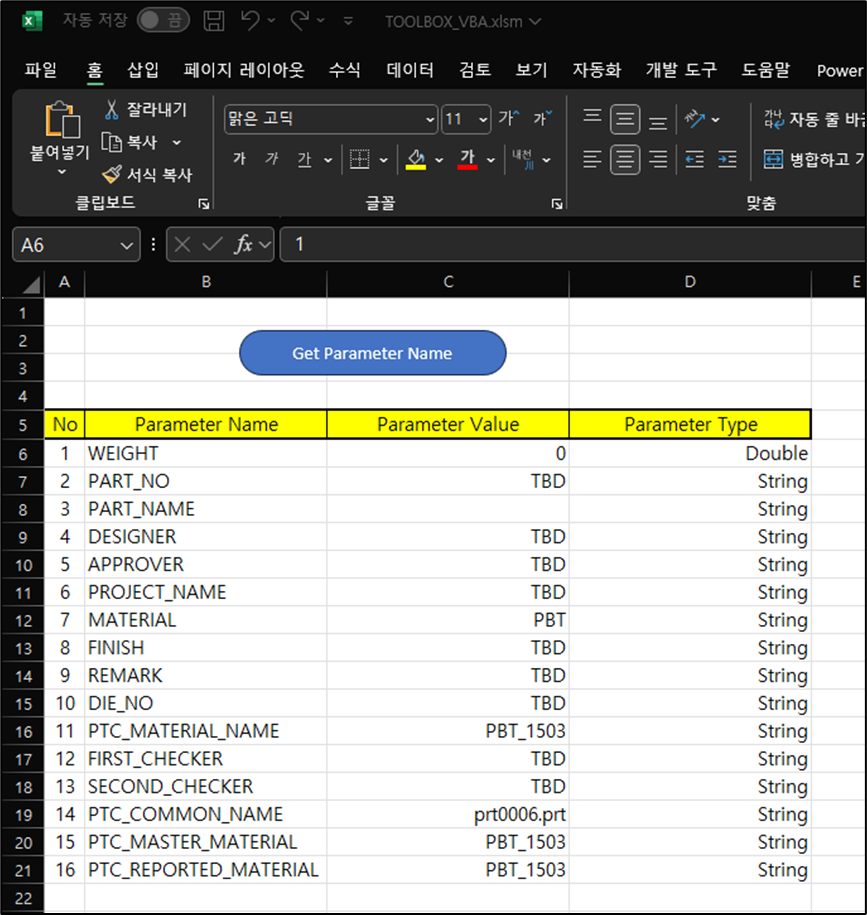

Gets the number of parameters the model has.
Gets the parameters name that the model has.
Gets the value of the parameters name that the model has.
Gets the types of parameters that the model has.





□ Main Code

Option Explicit
Sub GetParameter01()
    On Error GoTo RunError

    '// Module Name : CreoVBAStart
    Call CreoVBAStart.CreoConnt01

    Dim ParameterOwner As IpfcParameterOwner
    Dim BaseParameter As IpfcBaseParameter
    Dim Parameters As IpfcParameters
    Dim ParameterObject As Object
    Dim Parameter As IpfcParameter
    Dim ParamValue As IpfcParamValue
    Dim i As Integer

    Set ParameterOwner = model
    Set Parameters = ParameterOwner.ListParams

    For i = 0 To Parameters.Count - 1

           Set ParameterObject = Parameters.Item(i)
           Set ParamValue = ParameterObject.Value

           Worksheets("GetParameter01").Cells(i + 6, "A") = i + 1
           Worksheets("GetParameter01").Cells(i + 6, "B") = ParameterObject.Name

             If ParamValue.discr = 0 Then

                     Worksheets("GetParameter01").Cells(i + 6, "C") = ParamValue.StringValue
                     Worksheets("GetParameter01").Cells(i + 6, "D") = "String"

             ElseIf ParamValue.discr = 1 Then '// if parameter is real value

                      Worksheets("GetParameter01").Cells(i + 6, "C") = ParamValue.IntValue
                      Worksheets("GetParameter01").Cells(i + 6, "D") = "integer"

              ElseIf ParamValue.discr = 2 Then '// if parameter is real value

                      Worksheets("GetParameter01").Cells(i + 6, "C") = ParamValue.BoolValue
                      Worksheets("GetParameter01").Cells(i + 6, "D") = "Boolean"

             ElseIf ParamValue.discr = 3 Then '// if parameter is real value

                      Worksheets("GetParameter01").Cells(i + 6, "C") = ParamValue.DoubleValue
                      Worksheets("GetParameter01").Cells(i + 6, "D") = "Double"


            End If

    Next i



     MsgBox "Get Model Parameter Name", vbInformation, "korealionkk@gmail.com"

    conn.Disconnect (2)

    '// Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set BaseSession = Nothing
    Set model = Nothing

RunError:
            If Err.Number <> 0 Then

               Dim ErrorMessage As String
               ErrorMessage = ErrorHandlerModule.MapErrorToMessage(Err.Number) '// 모듈에서 함수 호출

               MsgBox "Process Failed: " & vbCrLf & _
               "Error No: " & CStr(Err.Number) & vbCrLf & _
               "Description: " & ErrorMessage, vbCritical, "Error"

                If Not conn Is Nothing Then
                    If conn.IsRunning Then
                        conn.Disconnect (2)
                    End If
                End If
            End If

End Sub



Dim ParameterObject As Object
Set ParameterObject = Parameters.Item(i)
Worksheets("GetParameter01").Cells(i + 6, "B") = ParameterObject.Name

Creo VBA API does not provide a function to retrieve the parameter names of a model.

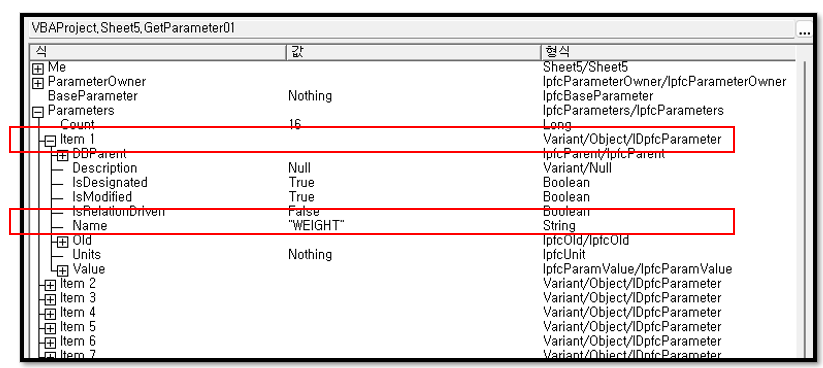

However, Parameter.item() returns the value as an object.
