Get the currently active model name

• Model names are imported from assemblies, parts, and drawings.
• An error occurs if there is no model that has been denatured.
• Creo and VBA connections use modules.

Excel VBA has a concept called a module. A module is the basic unit that organizes a project in VBA.
It is also expressed as a set of procedures. A procedure is a set of code to execute a specific function.



▷ CREO VBA Start module file location

connection to Creo

Please do not use "ipfc.solid" in the above code. If you use it, you will not be able to connect to the drawing file.

---

▷  Main Code

• Get the name and type of the model
• "ctrl+a" key sets current Windows as the active model

Option Explicit
Sub getbame01()
    On Error GoTo RunError

    '// Module Name : CreoVBAStart
    Call CreoVBAStart.CreoConnt01

    Dim Modeltype As String

    If model.Type = 0 Then
             Modeltype = "Assemble"
          ElseIf model.Type = 1 Then
             Modeltype = "Part"
          ElseIf model.Type = 2 Then
             Modeltype = "Drawing"
           Else
             Modeltype = "Check the model"
     End If

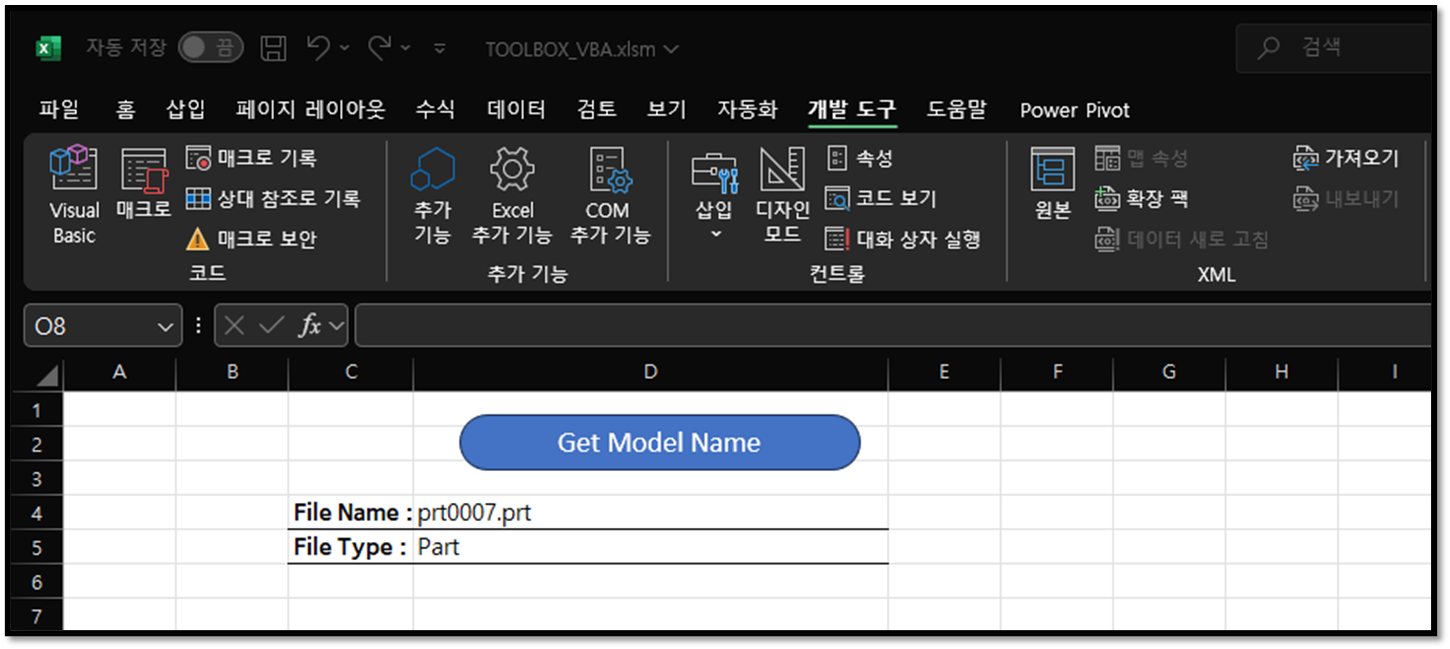

    Worksheets("getname").Cells(4, "D").Value = model.fileName
    Worksheets("getname").Cells(5, "D").Value = Modeltype

     MsgBox "Get Model Name", vbInformation, "korealionkk@gmail.com"

    conn.Disconnect (2)

    '// Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set BaseSession = Nothing
    Set model = Nothing

RunError:
            If Err.Number <> 0 Then
                MsgBox "Process Failed: An error occurred." & vbCrLf & _
                       "Error No: " & CStr(Err.Number) & vbCrLf & _
                       "Error Description: " & Err.Description & vbCrLf & _
                       "Error Source: " & Err.Source, vbCritical, "Error"
                If Not conn Is Nothing Then
                    If conn.IsRunning Then
                        conn.Disconnect (2)
                    End If
                End If
            End If

End Sub



enumerated type lists the supported model types. (ipfcmodel.type)

Number	enumerated type
0	An assembly.
1	A part.
2	A drawing.
3	2D_SECTION
4	A layout.
5	A drawing format.
6	A manufacturing model. (MFG)
7	A report.
8	A drawing markup.
9	A diagram.
10	Not specifying a particular model type
11	Layout model; NOTE: this type is read-only, passing it back to Creo may lead to unpredictable behavior.
