VBA For Creo

To : Jonny Stocco

by ToolBOX01 2023. 3. 15.
반응형

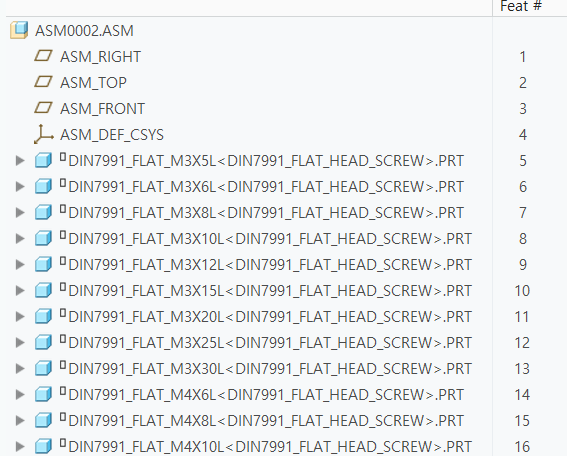

■ Base code - Show Family Table Instance name only

Option Explicit
Sub FamilyInstanceName()

    Dim oCreoFileName As String, oFrontWord As String
    Dim oCreoFileLength As Integer


oCreoFileName = Cells(1, "A")
    oCreoFileLength = InStr(oCreoFileName, "<") - 1
    oFrontWord = Left(oCreoFileName, oCreoFileLength)
    Cells(2, "A") = oFrontWord & Right(oCreoFileName, 4)


End Sub

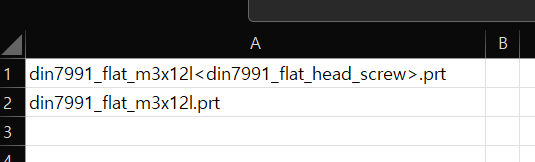

■ execution result


Option Explicit
Sub FamilyInstanceName()

     Dim oCreoFileName As String, oFrontWord As String
     Dim oCreoFileLength As Integer
     oCreoFileName = Cells(1, "A")

     if InStr(oCreoFileName, "<") = 0 Then

             Cells(2, "B") = oCreoFileName

     Else

            oCreoFileLength = InStr(oCreoFileName, "<") - 1
            oFrontWord = Left(oCreoFileName, oCreoFileLength)
            Cells(2, "B") = oFrontWord & Right(oCreoFileName, 4)

    End If

End Sub


PertList Program Download

ToolBOXVBA_02.xlsm
0.09MB



예시)

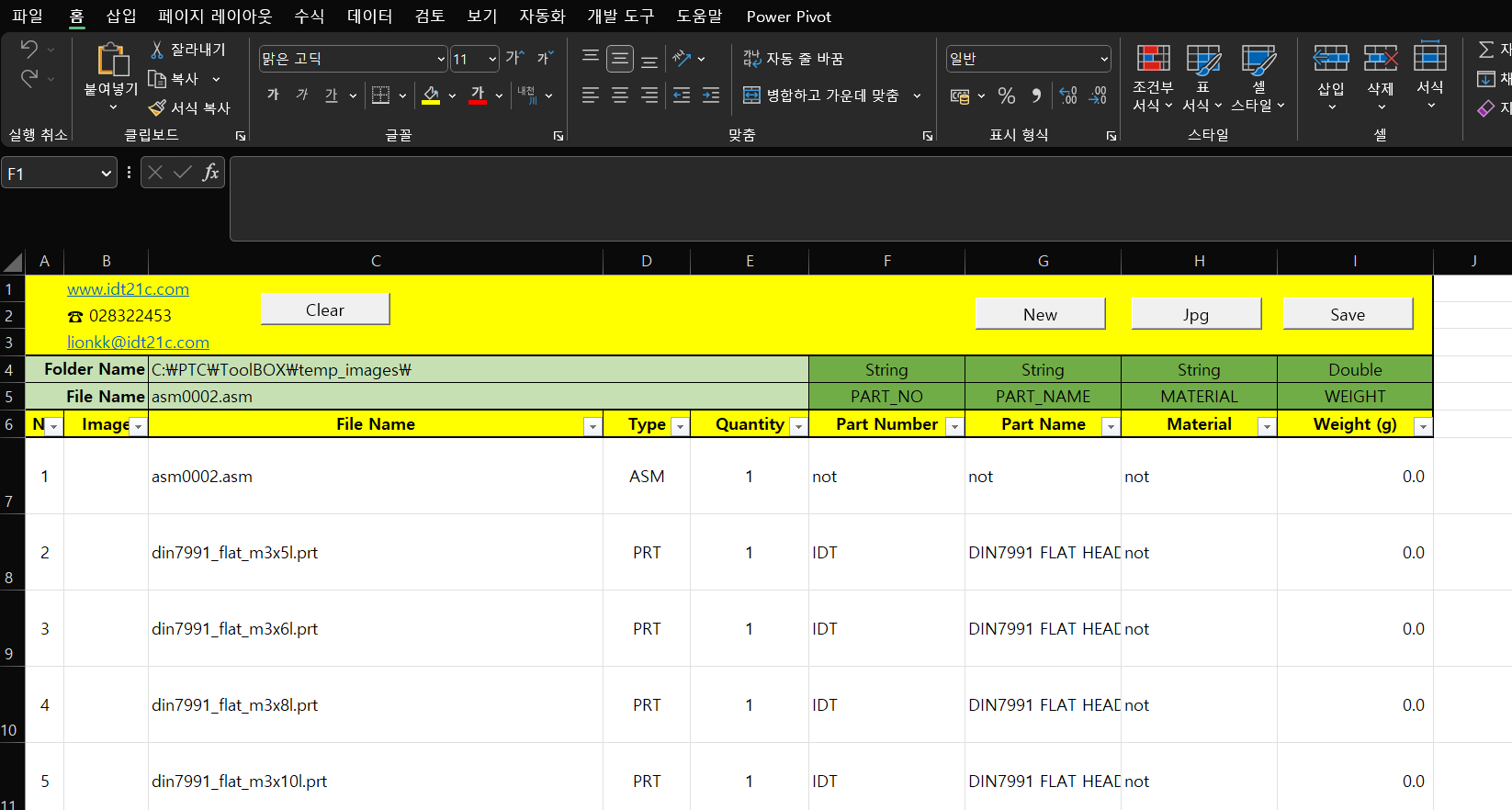

CREO Model Part List



1. Clear  : Clear All

2. New : Show assemble configuration files / Display assemble configuration files parameters

3. jpg : Image conversion and storage

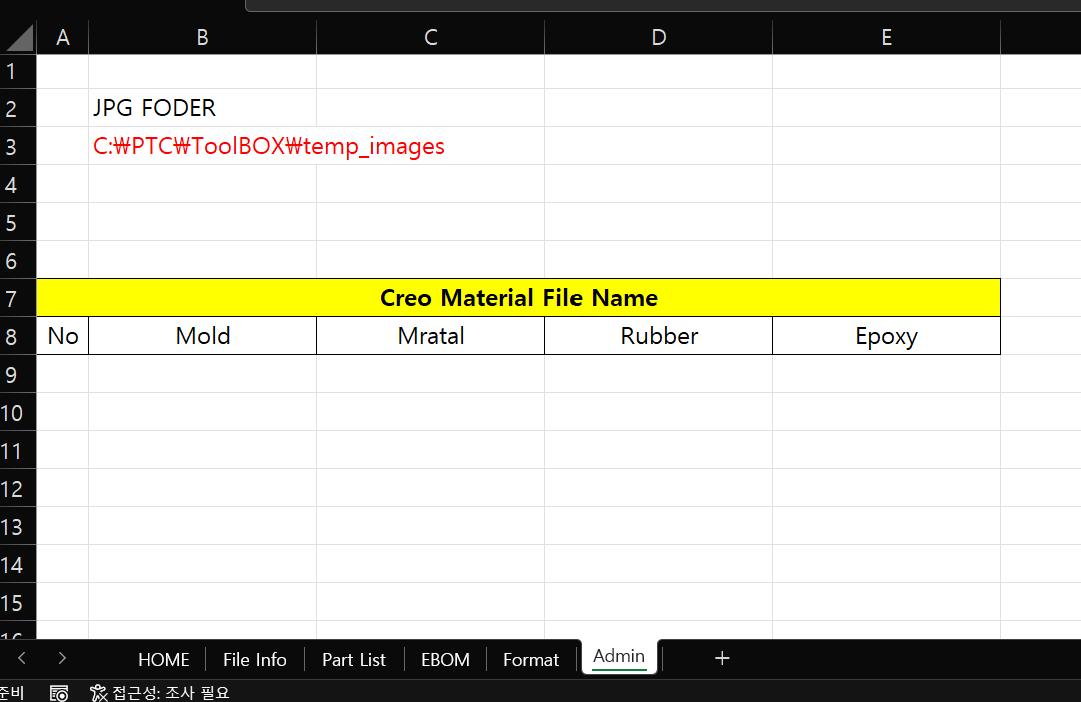

[ JPG FOLDER ]

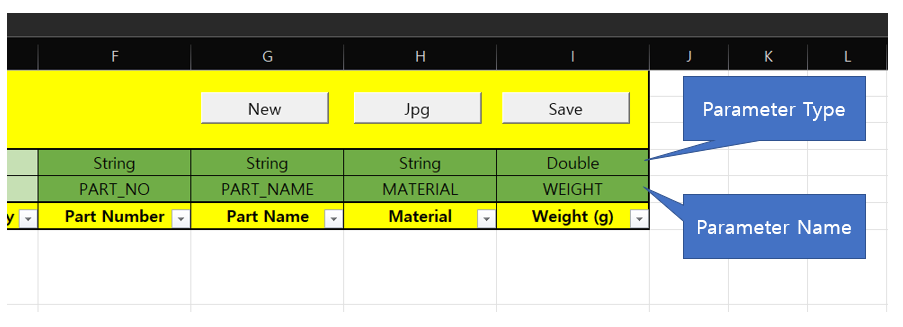

4. save :Save to Excel's Parameter Value Model


You can add, delete, or change paramtersms
Pay attention to capitalization
