Creo 화면의 좌측 하단의 중심축 (2차원)의 "X" 축을 기준으로 일정한 값을 증강 하는 JPG 파일을 생성 합니다.

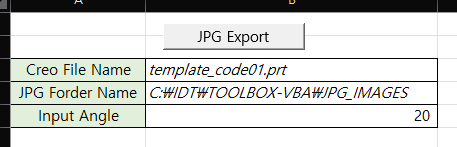

프로그램 화면에서 증가 각도 값을 입력 합니다.
>> 회전 하는 코드
Option Explicit
Sub rotate_model()
Application.EnableEvents = False
Dim asynconn As New pfcls.CCpfcAsyncConnection
Dim conn As pfcls.IpfcAsyncConnection:
'//////////////////////////////////////////////////////////////////////////////////////////////////////
'// Creo Connect Check
'//////////////////////////////////////////////////////////////////////////////////////////////////////
On Error Resume Next
Set conn = asynconn.Connect("", "", ".", 5)
If conn Is Nothing Then
MsgBox "Error occurred while starting new Creo Parametric Session!", vbInformation, "www.idt21c.com"
Exit Sub
End If
'//////////////////////////////////////////////////////////////////////////////////////////////////////
On Error GoTo RunError
Dim oSession As pfcls.IpfcBaseSession: Set oSession = conn.Session
Dim oModel As IpfcModel: Set oModel = oSession.CurrentModel
Dim oWindows As IpfcWindow: Set oWindows = oSession.CurrentWindow
'//////////////////////////////////////////////////////////////////////////////////////////////////////
'// Active Models Check
'//////////////////////////////////////////////////////////////////////////////////////////////////////
If oModel Is Nothing Then
MsgBox "No Active Models!", vbInformation, "www.idt21c.com"
Exit Sub
End If
'//////////////////////////////////////////////////////////////////////////////////////////////////////
Cells(3, "B") = oModel.Filename '// Model Name
Dim oFolderName As String: oFolderName = Cells(4, "B") '//JPG image storage location
Dim oRotateAngle, oCount As Double
oRotateAngle = Cells(5, "B") '// Input Angle
oCount = 360 / oRotateAngle
Dim i As Double
Dim oViewOwner As IpfcViewOwner: Set oViewOwner = oModel
For i = 0 To oCount - 1
Call oViewOwner.CurrentViewRotate(0, oRotateAngle)
oWindows.Refresh
MsgBox "Rotate" & i + 1
Next i
MsgBox "Completed Model Rotation", vbInformation, "www.idt21c.com"
conn.Disconnect (2)
'Cleanup
Set asynconn = Nothing
Set conn = Nothing
Set oSession = Nothing
Set oModel = Nothing
RunError:
If Err.Number <> 0 Then
MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
"Error No: " + CStr(Err.Number) + Chr(13) + _
"Error: " + Err.Description, vbCritical, "Error"
If Not conn Is Nothing Then
If conn.IsRunning Then
conn.Disconnect (2)
End If
End If
End If
End Sub
>> JPG 파일 생성 코드
>> 프로그램 Download
