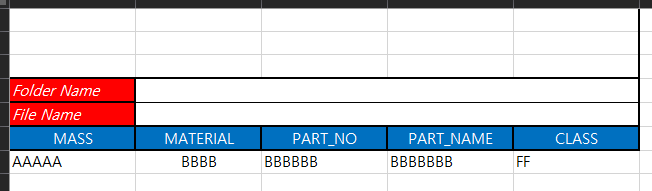

엑셀에서 Parameter 값 입력 -> Creo 변경

모델에 String 타입의 매개변수 값을 입력 합니다.



■ 소스 코드

Parameter는 IpfcParameterOwner 부터  시작 하여 코드를 작성 합니다. IpfcBaseParameters는 Parameter와 Dimension 값을 가져옵니다.

Option Explicit
Sub part_parameter()

  On Error GoTo RunError
    Dim asynconn As New pfcls.CCpfcAsyncConnection
    Dim conn As pfcls.IpfcAsyncConnection
    Dim oBaseSession As pfcls.IpfcBaseSession
    Dim oModel As pfcls.IpfcModel

    Set conn = asynconn.Connect("", "", ".", 5)
    Set oBaseSession = conn.session
    Set oModel = oBaseSession.CurrentModel

    '엑셀파일에 있는 Parameter List Count
    Dim oColumnscount As Long: oColumnscount = Cells(6, Columns.Count).End(xlToLeft).Column

    'Parameter
    Dim oParameterOwner As IpfcParameterOwner
    Dim oBaseParameter As IpfcBaseParameter
    Dim oParamValue As IpfcParamValue
    Dim oParameter As IpfcParameter
    Dim oCMModelItem As New CMpfcModelItem

    Dim oModelItem As IpfcModelItem
    Dim i As Long
    Dim oCellsParameterName As String


    For i = 0 To oColumnscount - 1

            Set oParameterOwner = oModel
            oCellsParameterName = Cells(6, i + 1).Value
            Set oParameter = oParameterOwner.GetParam(oCellsParameterName)
            Set oBaseParameter = oParameter

            Set oParamValue = oCMModelItem.CreateStringParamValue(Cells(7, i + 1))
            oBaseParameter.Value = oParamValue

    Next i

    oModel.save

'Disconnect with Creo
    conn.Disconnect (2)

Exit Sub

RunError:
    If Err.Number <> 0 Then
        MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                "Error No: " + CStr(Err.Number) + Chr(13) + _
                "Error: " + Err.Description, vbCritical, "Error"
        If Not conn Is Nothing Then
            If conn.IsRunning Then
                conn.Disconnect (2)
            End If
        End If
    End If

End Sub



part parameter v01.xlsm

0.02MB

---

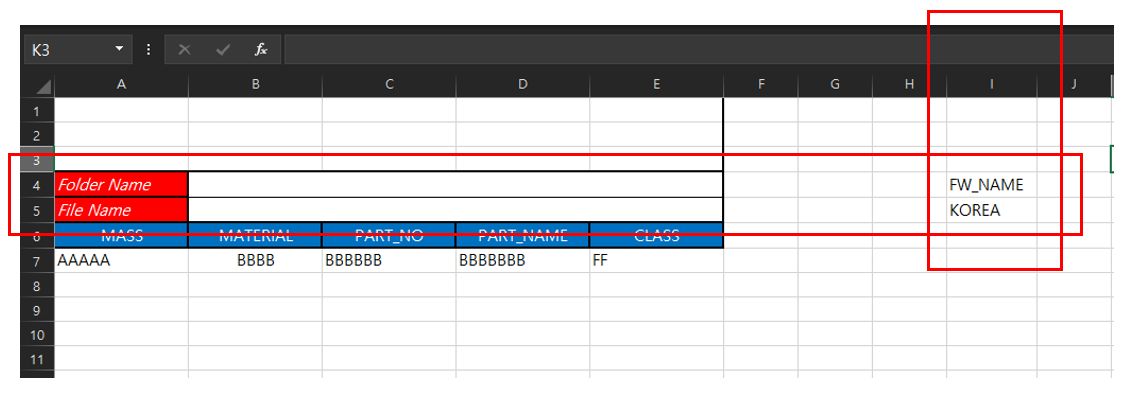

모델에 Parameter를 만들고, 엑셀에 입력한 값을 모델에 저장 합니다.



■ 소스 코드

Sub CreateParameter()

     On Error GoTo RunError
        Dim asynconn As New pfcls.CCpfcAsyncConnection
        Dim conn As pfcls.IpfcAsyncConnection
        Dim oBaseSession As pfcls.IpfcBaseSession
        Dim oModel As pfcls.IpfcModel

        Set conn = asynconn.Connect("", "", ".", 5)
        Set oBaseSession = conn.session
        Set oModel = oBaseSession.CurrentModel


        Dim oBaseParameter As IpfcBaseParameter
        Dim oParameterOwner As IpfcParameterOwner
        Dim oParameter As IpfcParameter
        Dim oParamValue As IpfcParamValue
        Dim oCMModelItem As New CMpfcModelItem




        Set oParameterOwner = oModel
        'Parameter Create

        Set oParamValue = oCMModelItem.CreateStringParamValue(Cells(5, "I"))
        Set oBaseParameter = oParameterOwner.CreateParam(Cells(4, "I"), oParamValue)


'Disconnect with Creo
    conn.Disconnect (2)


Exit Sub

RunError:
    If Err.Number <> 0 Then
        MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                "Error No: " + CStr(Err.Number) + Chr(13) + _
                "Error: " + Err.Description, vbCritical, "Error"
        If Not conn Is Nothing Then
            If conn.IsRunning Then
                conn.Disconnect (2)
            End If
        End If
    End If


End Sub

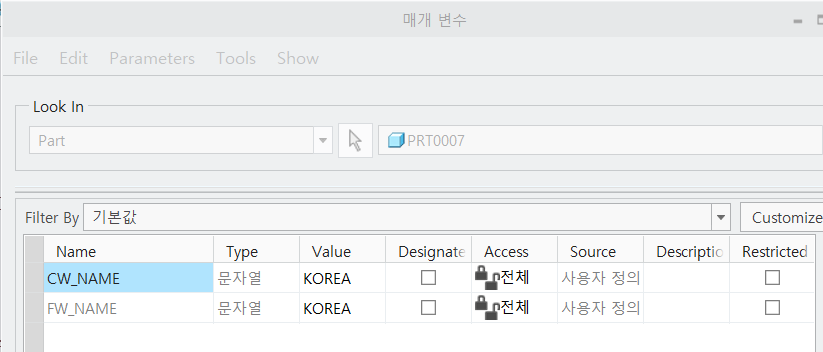

[ Parameter 및 값 변경 ]



---
