개발 요청] 이미지 생성 프로그램 #4

이미지 변환 코드

Sub JPGEportUtils01()

    On Error GoTo RunError
    Application.EnableEvents = False

     '//Image storage folder
     If Dir("c:\toolbox\images", vbDirectory) = "" Then

        MkDir ("c:\toolbox")
        MkDir ("c:\toolbox\images")

     End If

    '// Module Name : CreoVBAStart
    Call CreoVBAStart.CreoConnt01
    Dim owindow As IpfcWindow
    Set owindow = BaseSession.GetModelWindow(Model)

    '// Function SimplifiedRep :
    Dim SimplifiedRepSolid As IpfcSolid
    Dim Simrep As IpfcSimpRep
    Set SimplifiedRepSolid = Model

    Call BaseSession.SetConfigOption("display_planes", "no")
    Call BaseSession.SetConfigOption("display_axes", "no")
    Call BaseSession.SetConfigOption("display_coord_sys", "no")
    Call BaseSession.SetConfigOption("display_points", "no")
    Call BaseSession.SetConfigOption("display_annotations", "no")
    Call BaseSession.SetConfigOption("display", "shadewithedges")

    '// Define JPG Files conversion options variables
    Dim rasterHeight As Double: rasterHeight = 22
    Dim rasterWidth As Double: rasterWidth = 17

    Dim JPEGImageExportCreate As New CCpfcJPEGImageExportInstructions
    Dim oJPEGExport As IpfcJPEGImageExportInstructions
    Set oJPEGExport = JPEGImageExportCreate.Create(rasterHeight, rasterWidth)

    Dim instructions As IpfcRasterImageExportInstructions
    Set instructions = oJPEGExport

    instructions.DotsPerInch = EpfcDotsPerInch.EpfcRASTERDPI_100
    instructions.ImageDepth = EpfcRasterDepth.EpfcRASTERDEPTH_8


    '// Number of Part Files
    Dim rng As Range: Set rng = Worksheets("Suppress").Range("A6", Cells(Rows.Count, "A").End(xlUp))

    Dim oModelDescriptorCreate As New CCpfcModelDescriptor
    Dim oModelDescriptor As IpfcModelDescriptor

    Dim i As Long
    Dim oCreoFileName, str2, ret As String
    Dim Pic As Variant
    Dim Imagecell As Range
    Dim oJpgfilename As String

    For i = 0 To rng.Count - 1

        oJpgfilename = Worksheets("Suppress").Cells(i + 6, "F") & ".JPG"

        Set Simrep = SimplifiedRepSolid.GetSimpRep(Worksheets("Suppress").Cells(i + 6, "F"))
        Call SimplifiedRepSolid.ActivateSimpRep(Simrep)

        '// Jpg Image Location
        BaseSession.ChangeDirectory ("c:\toolbox\images")

        '// Run Jpg Image Conversion
        Call owindow.ExportRasterImage(oJpgfilename, instructions)

        '// Jpg Image Insert
        str2 = "c:\toolbox\images\" & oJpgfilename
        ret = Dir(str2)

        If ret <> "" Then
            Set Pic = Worksheets("Suppress").Pictures.Insert(str2)
            Set Imagecell = Worksheets("Suppress").Cells(i + 6, "G")

             Worksheets("Suppress").Cells(i + 6, "G").RowHeight = 100

            With Pic
                .ShapeRange.LockAspectRatio = msoFalse
                .Left = Imagecell.Left + 1
                .Top = Imagecell.Top + 1
                .Width = Imagecell.Width - 1
                .Height = Imagecell.Height - 1
            End With

        End If

   Next i


    MsgBox "Completed Creation of JPG Files", vbInformation, "korealionkk@gmail.com"

    conn.Disconnect (2)


    '// Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set BaseSession = Nothing
    Set Model = Nothing

RunError:
            If Err.Number <> 0 Then
                MsgBox "Process Failed: An error occurred." & vbCrLf & _
                       "Error No: " & CStr(Err.Number) & vbCrLf & _
                       "Error Description: " & Err.Description & vbCrLf & _
                       "Error Source: " & Err.Source, vbCritical, "Error"
                If Not conn Is Nothing Then
                    If conn.IsRunning Then
                        conn.Disconnect (2)
                    End If
                End If
            End If
End Sub



참고 사이트

이미지 변환 프로그램 소스

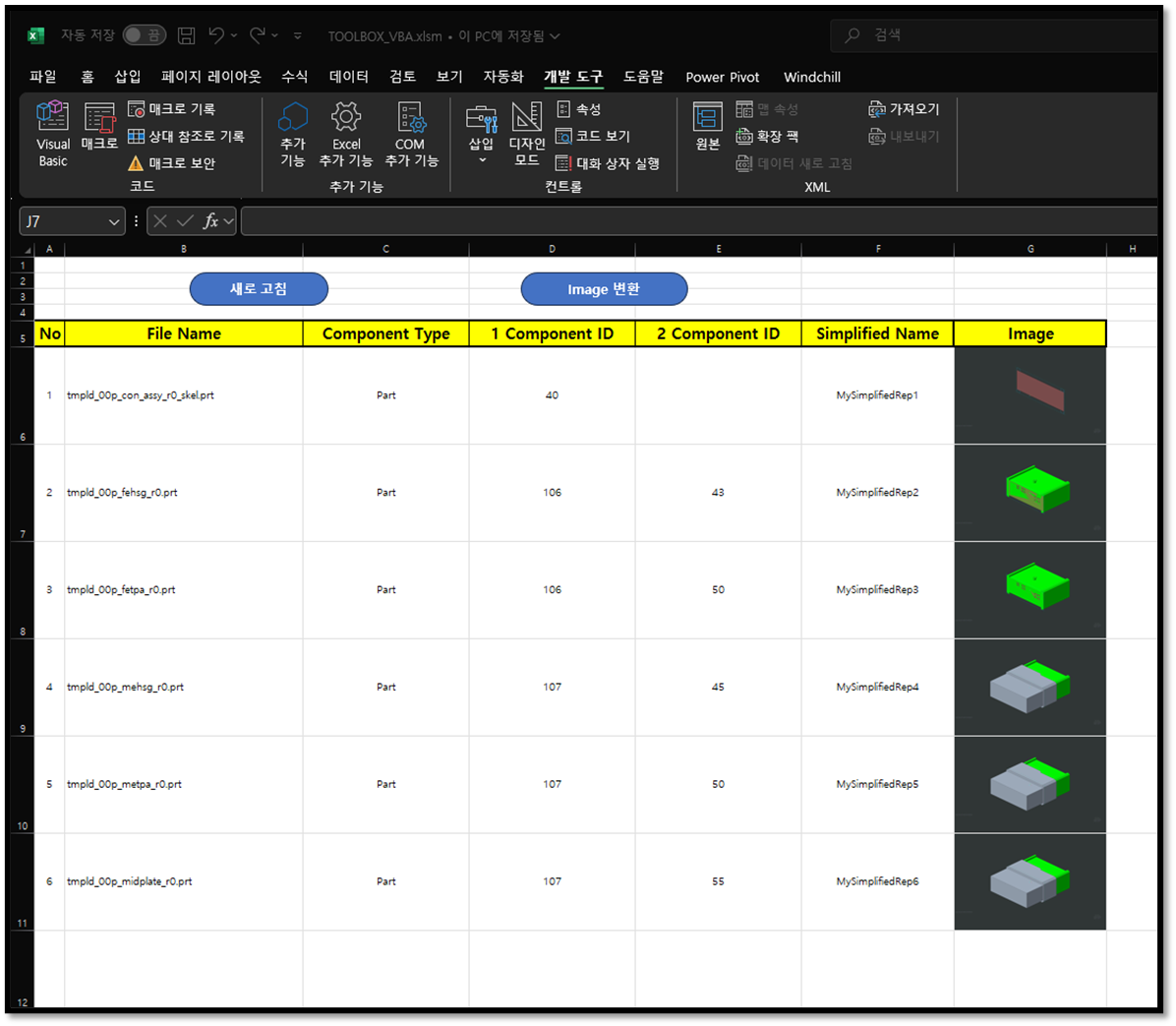

프로그램 실행 결과
