VBA Fundamentals #4 : IpfcSolid

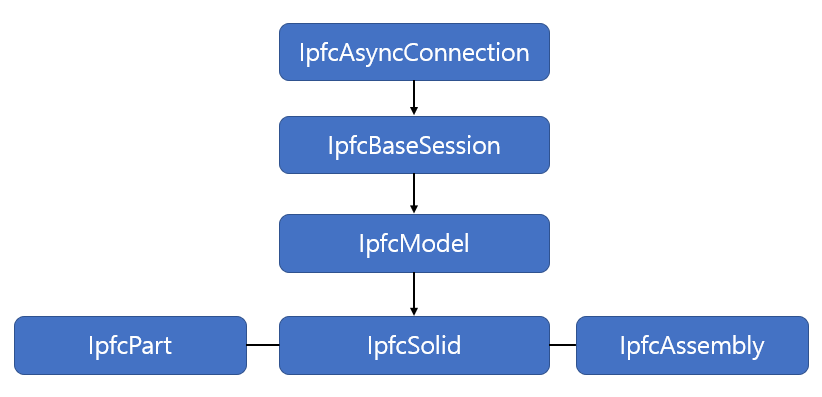

■ IpfcSolid

이 개체는 솔리드를 정의합니다.

Property : IsSkeleton as Boolean
 - 모델이 스켈레톤 모델이면 true이고 그렇지 않으면 false입니다.

Option Explicit
Sub SkeletonCheck()

        Dim asynconn As New pfcls.CCpfcAsyncConnection
        Dim conn As pfcls.IpfcAsyncConnection: Set conn = asynconn.CONNECT("", "", ".", 5)
        Dim oSession As pfcls.IpfcBaseSession: Set oSession = conn.session
        Dim oModel As IpfcModel: Set oModel = oSession.CurrentModel
        Dim oSolid As IpfcSolid: Set oSolid = oModel

        Dim oCheck As Boolean: oCheck = oSolid.IsSkeleton

            If oCheck = False Then

                MsgBox "현재 모델은 스켈레톤 아닙니다"

            Else

                MsgBox "현재 모델은 스켈레톤 입니다"

            End If

       conn.Disconnect (2)

    'Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set oSession = Nothing
    Set oModel = Nothing

End Sub

프로그램 실행 화면



IpfcSolid.GeomOutlin모델 사이즈 계산

모델 사이즈 관련 함수 #1 : IpfcSolid.GeomOutlin



---

■ IpfcAssembly 개체

Property :  IsExploded as Boolean
If the assembly is exploded, this attribute is true; otherwise, it is false

코드]

Option Explicit
Sub ExplodCheck()

    Dim asynconn As New pfcls.CCpfcAsyncConnection
    Dim conn As pfcls.IpfcAsyncConnection: Set conn = asynconn.CONNECT("", "", ".", 5)
    Dim oSession As IpfcBaseSession: Set oSession = conn.session
    Dim oModel As IpfcModel: Set oModel = oSession.CurrentModel

    Dim oAssembly As IpfcAssembly
    Set oAssembly = oModel
    Dim ExplodCheck As Boolean
    ExplodCheck = oAssembly.IsExploded

    MsgBox ExplodCheck

    'Disconnect with Creo
    conn.Disconnect (2)

End Sub



프로그램 실행 결과

Creo 화면	실행 결과
