치수 값을 자동으로 대입 하여, 모델 면적 표시하기

Changing the model with multiple dimension values



Template 모델에서 변경하고자 하는 치수들을 읽어 모델을 변경 합니다. 면적을 구하는 Feature를 생성하고,

면적 매개변수 값을 표시 합니다.

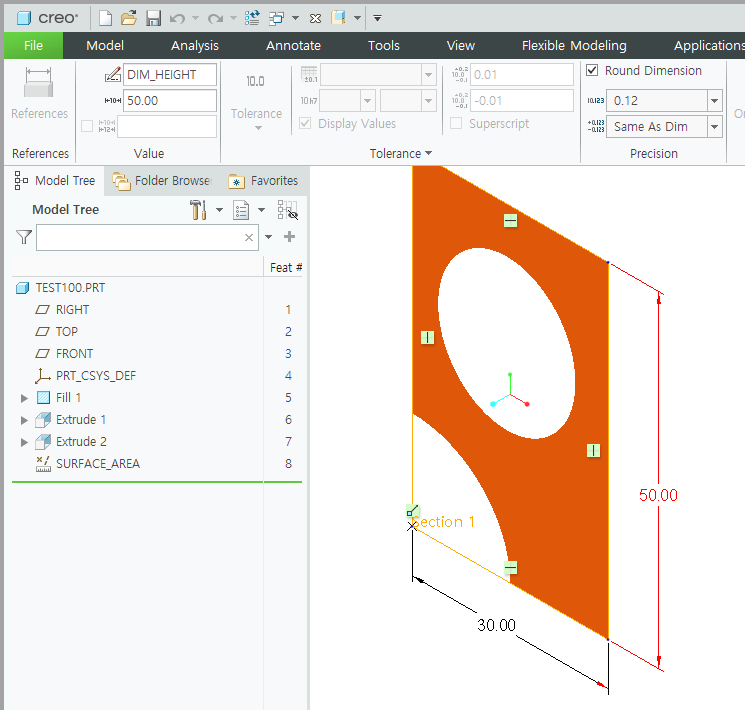

Template 모델



surface_area_creo60.prt.1

0.15MB

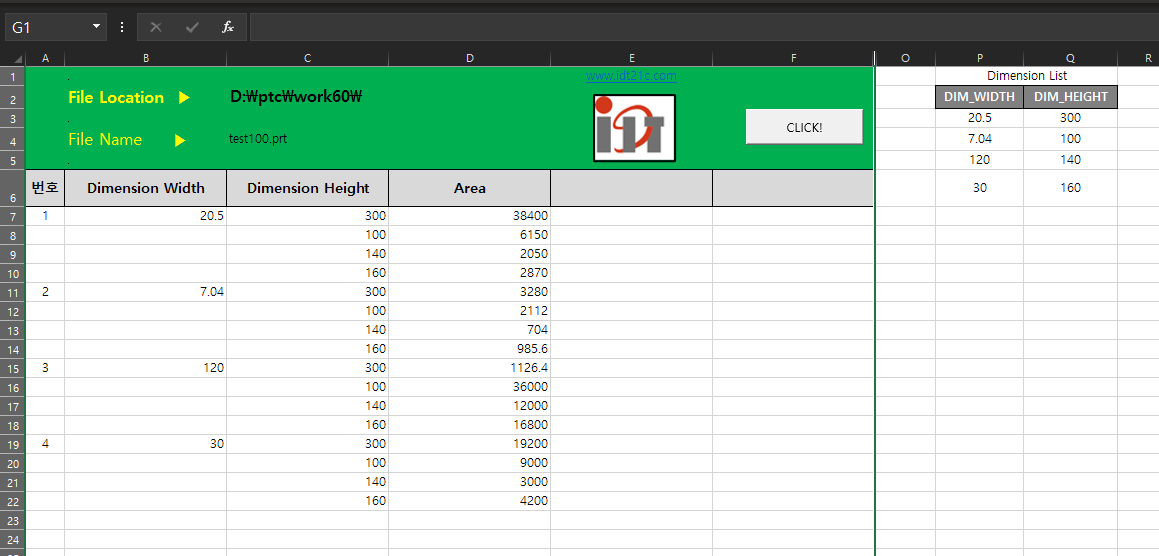

Dimension List의 dim_width , dim_height 값을 입력 합니다.

프로그램이 자동으로 Creo 모델에 치수값을 대입 합니다





엑셀 파일



dimension model change v1.xlsm

0.03MB





프로그램 소스



Sub Dimension_Modify()
        Dim asynconn As New pfcls.CCpfcAsyncConnection
        Dim conn As pfcls.IpfcAsyncConnection
        Dim session As pfcls.IpfcBaseSession

    On Error GoTo RunError
        Set conn = asynconn.Connect("", "", ".", 5)
        Set session = conn.session

        Dim model As IpfcModel
        Set model = session.CurrentModel

        'Cells 초기화
        Range(Cells(7, "A"), Cells(Rows.Count, "A")).EntireRow.Delete

        'Model File location
        Cells(2, "c").Select
        Selection.ClearContents
        Cells(2, "c") = session.GetCurrentDirectory

        'Model File Name
        Cells(4, "c").Select
        Selection.ClearContents
        Cells(4, "c") = model.Filename


        Dim Solid As IpfcSolid
        Set Solid = model
        Dim Modelowner As IpfcModelItemOwner
        Set Modelowner = Solid

        'Dimension Parameter 정의
        Dim Dimwidth As IpfcBaseDimension
        Set Dimwidth = Modelowner.GetItemByName(EpfcModelItemType.EpfcITEM_DIMENSION, "DIM_WIDTH")
        Dim DimwidthCount As Integer
        DimwidthCount = Range("p3", Range("p3").End(xlDown)).Rows.Count

        Dim Dimheight As IpfcBaseDimension
        Set Dimheight = Modelowner.GetItemByName(EpfcModelItemType.EpfcITEM_DIMENSION, "DIM_HEIGHT")
        Dim DimheightCount As Integer
        DimheightCount = Range("q3", Range("q3").End(xlDown)).Rows.Count

        'SET Regenerate
        Dim RegenInstructions As New CCpfcRegenInstructions
        Dim Instrs As IpfcRegenInstructions
        Set Instrs = RegenInstructions.Create(True, True, Nothing)
        Call session.SetConfigOption("regen_failure_handling", "resolve_mode")

        'Window Repaint
        Dim window As pfcls.IpfcWindow
        Set window = session.CurrentWindow


        'Surface_Area Feaure Parameter
        Dim ModelItemOwner As IpfcModelItemOwner
        Set ModelItemOwner = session.CurrentModel
        Dim Featureitem As IpfcModelItem
        Set Featureitem = ModelItemOwner.GetItemByName(EpfcModelItemType.EpfcITEM_FEATURE, "SURFACE_AREA")

        Dim Powner As pfcls.IpfcParameterOwner
        Set Powner = Featureitem
        Dim Param As IpfcParameter
        Set Param = Powner.GetParam("AREA")
        Dim Paramname As IpfcBaseParameter
        Set Paramname = Param
        Dim ParamValue As IpfcParamValue



        Dim j As Integer
        j = 0

        For i = 0 To DimwidthCount - 1
            Dimwidth.DimValue = Cells(i + 3, "p")
            Cells(j + 7, "b") = Dimwidth.DimValue
            Cells(j + 7, "a") = i + 1

                For k = 0 To DimheightCount - 1
                    Dimheight.DimValue = Cells(k + 3, "q")
                    Cells(j + 7 + k, "c") = Dimheight.DimValue
                    Set ParamValue = Paramname.Value
                    Cells(j + 7 + k, "d") = ParamValue.DoubleValue
                    Call Solid.Regenerate(Instrs)
                    Call Solid.Regenerate(Instrs)
                    Call window.Activate
                    Call window.Repaint



                 Next k
             j = j + k
        Next i

        Call session.SetConfigOption("regen_failure_handling", "no_resolve_mode")


    conn.Disconnect (2)

    'Cleanup
    Set asynconn = Nothing
    Set conn = Nothing
    Set session = Nothing
    Set model = Nothing


RunError:

    If Err.Number <> 0 Then
        MsgBox "Process Failed : Unknown error occurred." + Chr(13) + _
                "Error No: " + CStr(Err.Number) + Chr(13) + _
                "Error: " + Err.Description, vbCritical, "Error"

        If Not conn Is Nothing Then
            If conn.IsRunning Then
                conn.Disconnect (2)
            End If
        End If
    End If

End Sub













위 프로그램 소스를 활용 한다면 거리 값, 무게, 각도 값을 측정 할수 있습니다. 치수 변경을 통해 최적의 값을 찾을수

있습니다.
